Features:

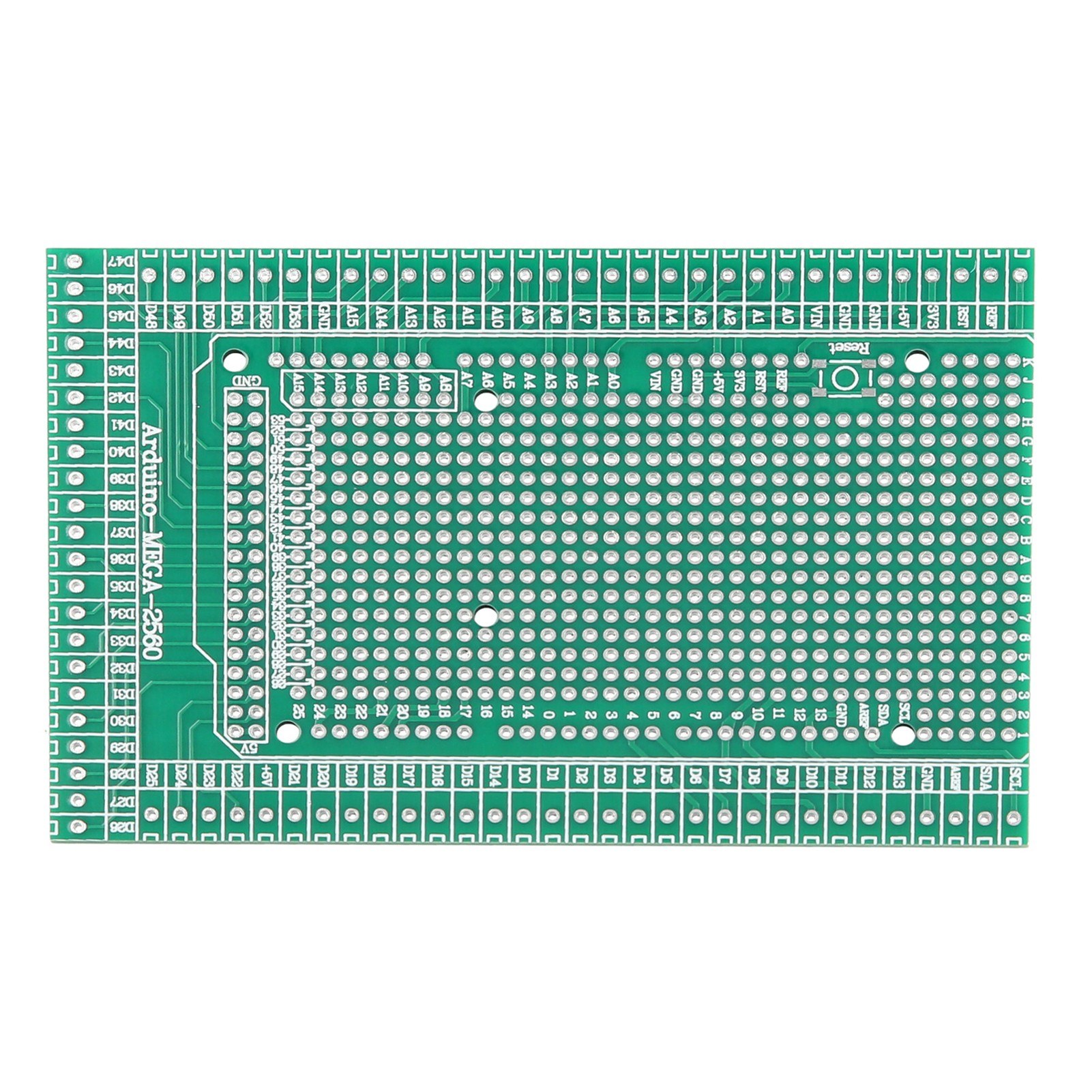

The Kit include Prototype PCB, Terminal Blocks, Female Header Sockets.

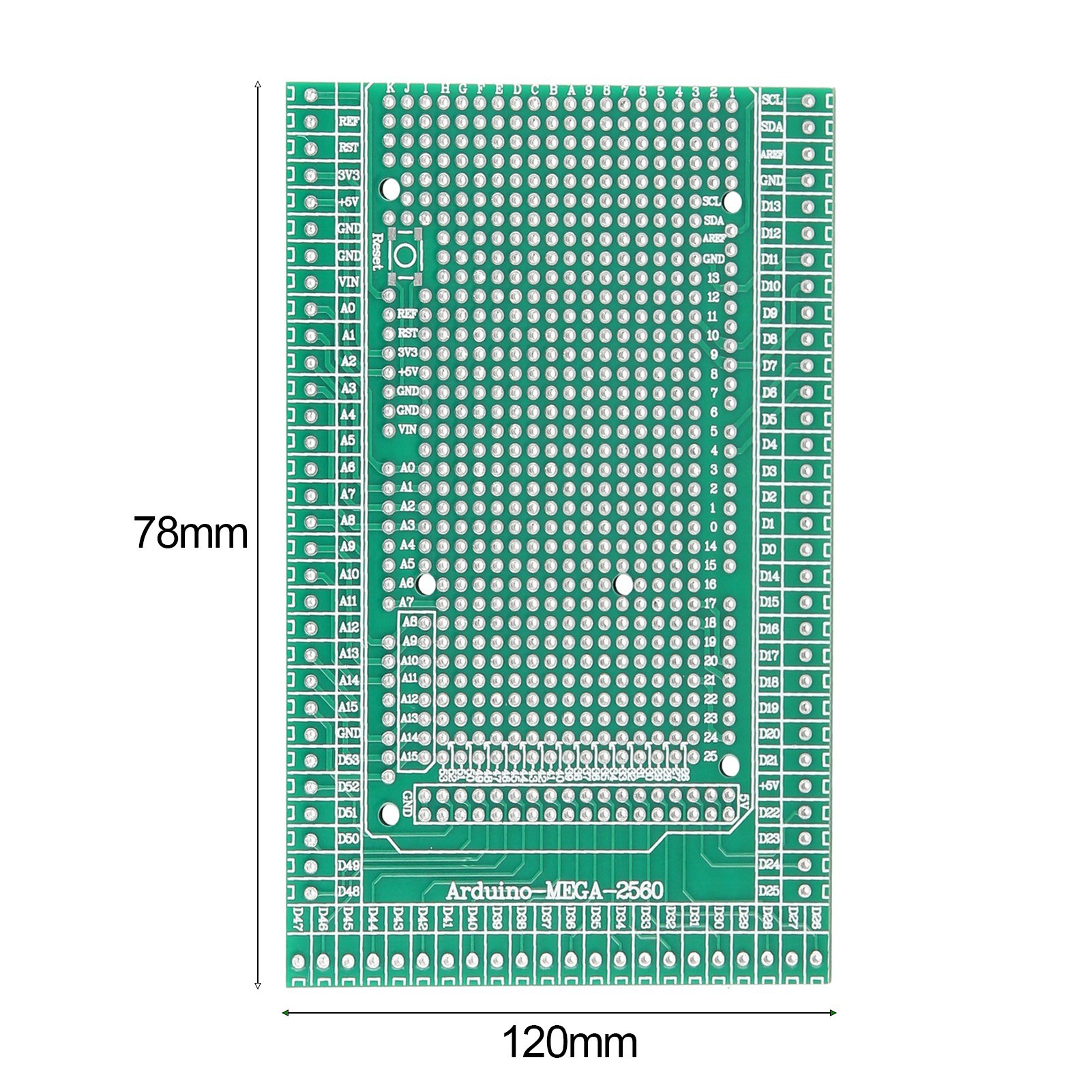

FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm.
Terminal Block: Pitch 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs ).
Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass.
The parts that are not assembled need to be assembled by themselves.
Specifications:
Pads grid / pitch 2.54mm / 0.1", hole diameter 0.8mm.
Terminal block pitch 3.5mm / 0.138", hole diameter 1.2mm.
Female Header Socket:
Pitch 0.1"/2.54mm, pin length 15mm / 0.59"
Single row 10pin x1pcs, singal row 8pin x 5pcs, dual row 18pin x1pcs.
Package size:10x8x3cm
Package weight:73g
Packing List:
1x Screw Terminal Block Shield Board Kit
