Switch the modes between cool and heat: control temperature by setting the temperature setting value and the difference value, temperature calibration, refrigerating control output delay protection. Alarm when temperature exceeds temperature limit or when sensor error.
Features:
Easy and safe to operate, precise temperature control.
Alarm when temperature exceeds temperature limit or when sensor error.
Control temperature by setting the temperature setting value and the difference value, temperature calibration, refrigerating control output delay protection.
Fine quality but inexpensive.
Specifications:
Temperature measuring range: -50℃ to 99℃
Resolution: 0.1℃
Accuracy: ±1℃ (-50℃ to 70℃)
Sensor error delay: 1 minute

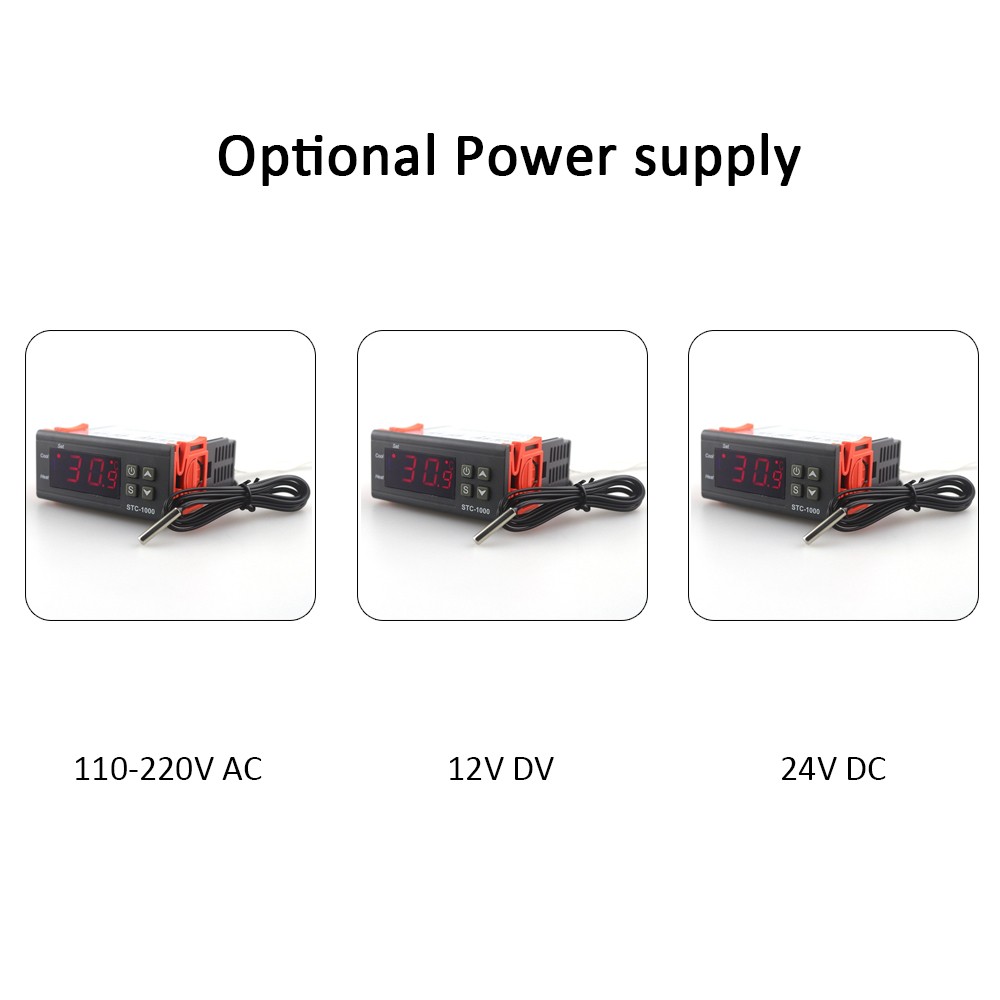

Power supply: 110-220V AC, 12V DV, 24V DC (optional)
Power consumption: <3W
Sensor: NTC sensor (1PC)
Relay contact capacity: 2 relay cool 10A/250V AC, heat 10A/250V AC
Ambient temperature: 0℃ to 60℃
Storage temperature: -30℃ to 75℃
Relative humidity: 20% to 85% (No condensate)
Sensor length: 1.0m
Front panel size: 75 * 34.5mm / 3.0 * 1.4in
Item size: 75 * 34.5 * 85mm / 3.0 * 1.4 * 3.3in
Mounting size: 71 * 29mm / 2.8 * 1.1in
Item weight: 120g / 4.2oz
Package size: 10 * 8 * 3cm / 3.9 * 3.1 * 1.2in
Package weight: 140g / 4.9oz
Package list:
1 * Temperature Controller
1 * Temperature Sensor
1 * Instruction Manual
